OPD 19-150-M-10 (P10)
Code: 29-19-150M06Product detailed description

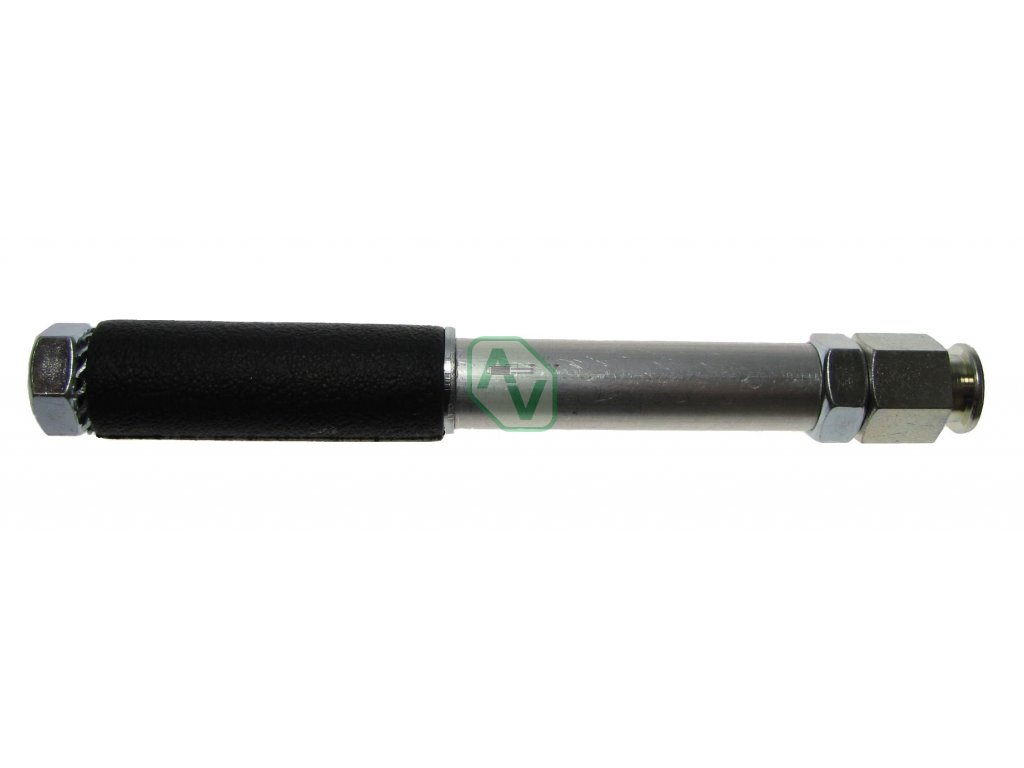

Steel grouting packer with flat-head nipple that provides the function of the check valve. It is designed for high pressure grouting of concrete and masonry. The packer has a large inside diameter and thus allows for a higher delivery of grouting material.Additional parameters
| Category: | with flat-head nipple |
|---|---|
| Weight: | 0.125 kg |
| Connection method: | Hook-on-coupler 16 mm |
| Total length in mm: | 150 |
| Designed for bore diameter in mm: | 20 |
| Recommended grouting materials: | polyurethanes, epoxies, acrylates, microcements |
| Maximum pressure: | 250 bar |
| Minimum pressure for opening the valve in the nipple in bar: | 20 bar |
| Designed for: | concrete, brick, stone |
| Benefits: | inside diameter of the packer up to 6mm, easy assembly and disassembly |
